Electrical Conduit Pipe

What is the Difference Between an Electrical Conduit Pipe and a Cable Duct Pipe?

Both protect cables, but they serve different environments and applications. An electrical conduit pipe is used for surface-mounted or concealed wiring within buildings, protecting electrical cables from mechanical damage, moisture, and contact. A cable duct pipe is designed for underground installation, protecting power, telecom, broadband, and CCTV cables from soil pressure, ground movement, moisture ingress, and rodent damage. Supreme's cable protection range covers both through Cableshield PVC conduit pipe for electrical wiring and Cableguard DWC hdpe cable duct pipes, giving contractors and utility providers a complete cable protection answer across above-ground and underground applications.

Which Electrical Conduit Pipe is Right for My Building?

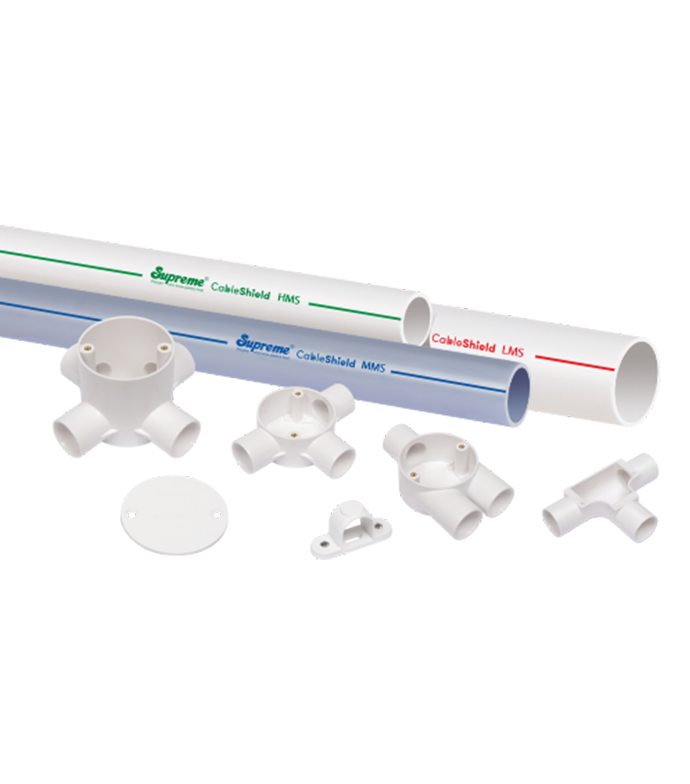

Supreme Cableshield pvc electrical conduit pipe is manufactured from high-quality uPVC compound conforming to IS:9537 Part 3, available in 20mm to 50mm sizes across three duty classes: LMS (Light Medium Stiff), MMS (Medium Medium Stiff), and HMS (Heavy Medium Stiff). The duty class determines wall thickness and mechanical strength, allowing the correct specification for surface wiring, concealed wall installation, or more demanding structural environments. Cableshield conduits are flame retardant and self-extinguishing — a critical safety property that prevents fire from propagating through the wiring conduit in the event of an electrical fault. The pipes are non-conductive, preventing current leakage to the conduit body. They are available in Texla White and Ivory colours and come with a complete range of compatible fittings. To understand why PVC conduit pipes are the preferred choice for residential and commercial electrical wiring, read our guide on why PVC conduit pipes are ideal for electrical wiring.

Also Read: Why PVC conduit pipes are ideal for electrical wiring

When Should I Use HDPE Cable Duct Pipes Instead of PVC Conduit?

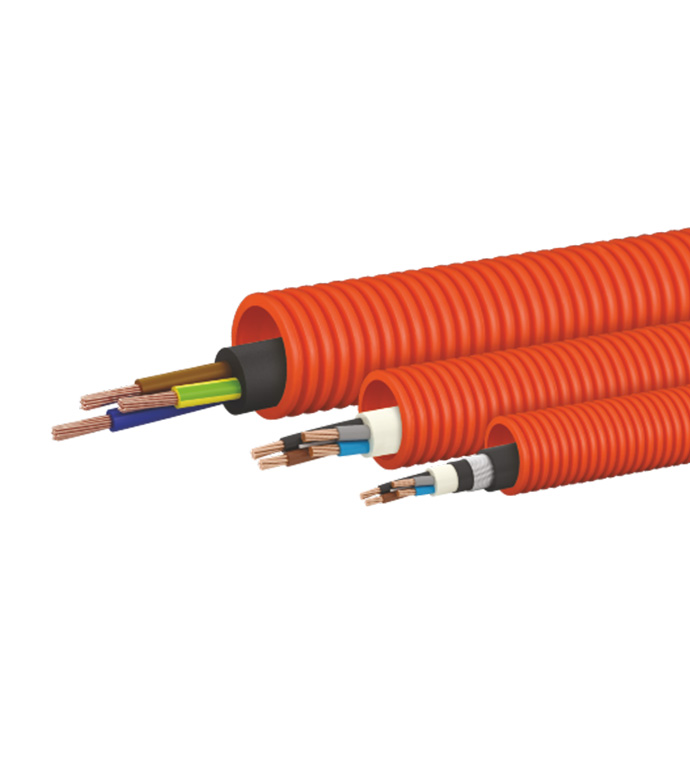

Underground cable networks require a pipe that can withstand burial loads, ground movement, moisture ingress, and physical threats including rodent attack. Supreme Cableguard DWC hdpe cable duct pipes are manufactured as per IS:16025 Part 24 in Type 450N, available from 40mm to 120mm. The double wall construction — smooth inner surface for easy cable pulling, corrugated outer wall for crush resistance — provides the structural performance required for buried installations. Cableguard is anti-rodent, carries no flame propagating properties, and is watertight and moisture proof, making it the correct specification for underground power distribution networks, telecom and broadband infrastructure, CCTV cable networks, railways, airports, street lighting, highways, flyovers, and tunnels. As one of the established hdpe duct pipe manufacturers in India, Supreme manufactures Cableguard to the exacting standards that infrastructure-grade underground cable protection demands.

Why Choose Supreme for Cable Protection Pipes?

Supreme's electrical conduit pipe range covers IS:9537 Part 3 certified Cableshield in LMS, MMS, and HMS duty classes, and IS:16025 Part 24 certified Cableguard pvc electrical conduit pipe and HDPE duct pipes for underground infrastructure. Both products are manufactured from virgin uPVC compound, flame retardant, non-conductive, and built for long service life with minimal maintenance. For electrical contractors, construction companies, telecom utilities, and infrastructure project specifiers looking for verified, standard-compliant cable protection from a single hdpe duct pipe manufacturers source, Supreme delivers across both above-ground and underground requirements.
